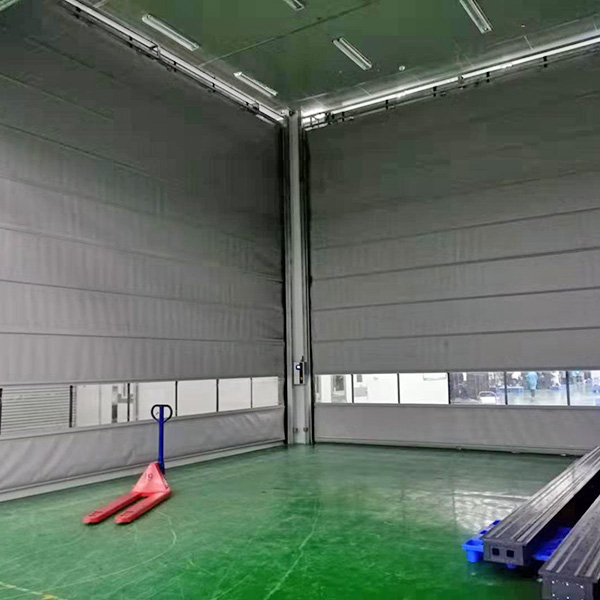

Fast Stacking Door
It consists of HaiLipu inverter,computer programming PLC and a variety of commonly used protection devices. Control Box is built-in vector control mode ,high torque inverter (150%1HZ) with high performance, high reliability, high stability, high precision. We also use variable frequency control technology, to ensure reach soft start, slow stop function, smooth operation process, to increase the service life
- Product details
Product parameters
Product parameters 1. Control box:
composed of Hailip frequency converter, computer programming PLC and various commonly used protection devices, built-in vector control mode, high control accuracy; high torque inverter (150% 1HZ), PLC combined into one, with High performance, high reliability, high stability, high precision positioning and other characteristics. At the same time, the use of frequency conversion control technology has soft start and slow stop functions to ensure the smooth operation of the door body and increase the service life.
2. Power system: Sino-Italian joint venture SEJ special motor for fast rolling door.
1. Power: 1.5KW Select the required model according to the size of the door.
2. Voltage: 220V stable performance.
3. Rotation speed: 1500 rpm, F: IP55, can meet the requirements of high frequency opening.
4. Advantages: S4 type with large load, the latest generation of reduction gear, high efficiency, energy saving and low noise
3. Door structure:
1. Door box, door legs, hood: high-quality carbon steel, thickness 2.0MM thick, the surface is treated by high-temperature powder electrostatic spraying process (color is optional), the door head is made of cold rolled steel plate structure, After repeated anti-rust treatment, the surface is treated with high-temperature powder coating; smooth; bright, the color is the same as the door frame.
2. Curtain: The material of the curtain is high-density industrial coated base fabric, which is produced in France (thickness 0.8mm), and the color is blue, yellow, white, etc. The technical parameters are: tensile strength: (warp / weft) 4000 / 3500N tear strength: (warp / weft) 600 / 600N, the use temperature is between -30 ℃ and + 70 ℃. Fire rating: German standard DIN75200. Fire-retardant, flame-retardant and self-sustaining. The curtain divider processing can be replaced by itself.
3. Perspective window: Low temperature resistant and anti-aging PVC perspective window, the use temperature is -40 ℃ to + 70 ℃, and the position is above 1.2-1.5m, which increases the safety performance, management performance and lighting rate.
Fourth, the control and use:
1, the use of two-sided manual buttons: up, down, emergency stop, switch, easy to use.
2. Photoelectricity (Jetek): The photoelectric protection switch is installed at the bottom of the door body, and any objects within the photoelectric range will not be closed if the door is quickly rolled, which better protects the safety of people and objects.
3. Emergency configuration for power failure: The strap-type stacking door is equipped with a manual rocker device. In case of power failure or failure, the manual rocker can be used to control the strap-type stacking door to open or close.
4. Switching: The fast stacking door is in the standby state, and can be manually switched and automatically switched. It is suitable for two use environments and extends the service life of the stacking door.
5. Opening speed:
1. The rapid stacking doors all have an opening speed of 0.7-1.7m / s (adjustable) to ensure fast, efficient and energy-saving. At the same time, the high-speed opening also minimizes the risk of collision of the rapid stacking doors Even if it is collided, there is no need for any special tools or skills to restore the fast stacking door in a short time.
2. Opening and closing times: the opening and closing times can reach 1000-1500 times / day.
6. The
rails on both sides of the sealed door frame are equipped with sealing brushes, which are insect-proof and dust-proof. Particles, suitable for 10,000-300,000-level purification workshop, fast accumulation door performance, no dust accumulation, high efficiency, stability, waterproof and easy to clean. The bottom end is equipped with a heavy air barrier cloth (PVC base cloth), which can be closely combined with various uneven floors to achieve a better sealing effect.
7.
Anti- wind effect Quick stacking door is equipped with high-strength anti-oxidation aluminum alloy reinforcement, wind resistance: 20m / s. Aluminum windproof reinforced ribs and structured fabric door curtains not only increase the aesthetics and firmness, but also have a good sealing effect when the stacking roller doors are stacked under harsh environmental conditions.
8. Quality assurance: The quick stacking door is guaranteed for one year free of charge (except for natural disasters and human factors) from the date of installation and acceptance by the buyer.
composed of Hailip frequency converter, computer programming PLC and various commonly used protection devices, built-in vector control mode, high control accuracy; high torque inverter (150% 1HZ), PLC combined into one, with High performance, high reliability, high stability, high precision positioning and other characteristics. At the same time, the use of frequency conversion control technology has soft start and slow stop functions to ensure the smooth operation of the door body and increase the service life.
2. Power system: Sino-Italian joint venture SEJ special motor for fast rolling door.
1. Power: 1.5KW Select the required model according to the size of the door.
2. Voltage: 220V stable performance.
3. Rotation speed: 1500 rpm, F: IP55, can meet the requirements of high frequency opening.
4. Advantages: S4 type with large load, the latest generation of reduction gear, high efficiency, energy saving and low noise
3. Door structure:
1. Door box, door legs, hood: high-quality carbon steel, thickness 2.0MM thick, the surface is treated by high-temperature powder electrostatic spraying process (color is optional), the door head is made of cold rolled steel plate structure, After repeated anti-rust treatment, the surface is treated with high-temperature powder coating; smooth; bright, the color is the same as the door frame.
2. Curtain: The material of the curtain is high-density industrial coated base fabric, which is produced in France (thickness 0.8mm), and the color is blue, yellow, white, etc. The technical parameters are: tensile strength: (warp / weft) 4000 / 3500N tear strength: (warp / weft) 600 / 600N, the use temperature is between -30 ℃ and + 70 ℃. Fire rating: German standard DIN75200. Fire-retardant, flame-retardant and self-sustaining. The curtain divider processing can be replaced by itself.
3. Perspective window: Low temperature resistant and anti-aging PVC perspective window, the use temperature is -40 ℃ to + 70 ℃, and the position is above 1.2-1.5m, which increases the safety performance, management performance and lighting rate.
Fourth, the control and use:
1, the use of two-sided manual buttons: up, down, emergency stop, switch, easy to use.
2. Photoelectricity (Jetek): The photoelectric protection switch is installed at the bottom of the door body, and any objects within the photoelectric range will not be closed if the door is quickly rolled, which better protects the safety of people and objects.
3. Emergency configuration for power failure: The strap-type stacking door is equipped with a manual rocker device. In case of power failure or failure, the manual rocker can be used to control the strap-type stacking door to open or close.
4. Switching: The fast stacking door is in the standby state, and can be manually switched and automatically switched. It is suitable for two use environments and extends the service life of the stacking door.
5. Opening speed:
1. The rapid stacking doors all have an opening speed of 0.7-1.7m / s (adjustable) to ensure fast, efficient and energy-saving. At the same time, the high-speed opening also minimizes the risk of collision of the rapid stacking doors Even if it is collided, there is no need for any special tools or skills to restore the fast stacking door in a short time.
2. Opening and closing times: the opening and closing times can reach 1000-1500 times / day.
6. The
rails on both sides of the sealed door frame are equipped with sealing brushes, which are insect-proof and dust-proof. Particles, suitable for 10,000-300,000-level purification workshop, fast accumulation door performance, no dust accumulation, high efficiency, stability, waterproof and easy to clean. The bottom end is equipped with a heavy air barrier cloth (PVC base cloth), which can be closely combined with various uneven floors to achieve a better sealing effect.
7.
Anti- wind effect Quick stacking door is equipped with high-strength anti-oxidation aluminum alloy reinforcement, wind resistance: 20m / s. Aluminum windproof reinforced ribs and structured fabric door curtains not only increase the aesthetics and firmness, but also have a good sealing effect when the stacking roller doors are stacked under harsh environmental conditions.
8. Quality assurance: The quick stacking door is guaranteed for one year free of charge (except for natural disasters and human factors) from the date of installation and acceptance by the buyer.
